當前位置：首頁 >> >>Fine small pneumatic control valve

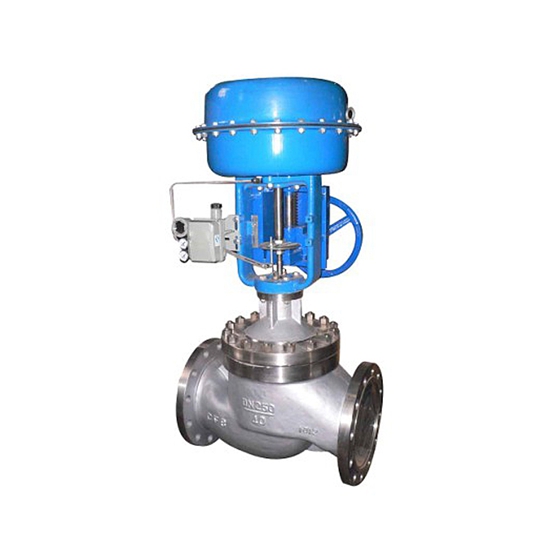

ZJHM series pneumatic diaphragm control valve sleeve is a pressure balanced valve. Equipped with multi spring actuator, compact overall structure, star light, good stability. The fluid channel is the 3 line type, the pressure drop loss, allowing a large pressure difference, low noise, large flow capacity. Widely used for precise control of gases, liquids and other media technology parameters such as: pressure, temperature, flow, liquid level maintained at a given value. Especially applicable to the large flow rate, pressure, leakage requirements is not high.
This series of products are the standard and adjust the cut-off type, bellows seal type, jacket type insulation and other varieties. Product nominal pressure level of a user ~10, 16, 40, 64, valve caliber range by DN20~500, applicable for the fluid temperature from -196 ℃ ~+560 ℃, various grades of its range. The leakage of standard IV, V and VI. Flow characteristics such as linear or percentage. A variety of products, specifications are available.
Characteristic.
1 the balance valve structure, the axial unbalanced force is small, allowing a large pressure difference, stability. Sleeve good interchangeability, convenient assembly and disassembly, easy repair.
2 full metal valve structure is suitable for various occasions, to achieve the IV level leakage standard, soft sealing structure of valve to achieve the VI level leakage standard.
3 valve designed according to principles of fluid mechanics such as low flow resistance load into surface flow, large adjustable range, inherent adjustable ratio 50:1, rated flow coefficient of 30%.
4 implementing agencies for the use of multi spring structure, height reduction of 307%. To reduce the weight of 30%.
5.ZJHMW shaped bellows sealed valve, the stem form of mobile complete sealing, blocking the fluid leakage.
| Name | Texture of material |
| The valve body valve cover | ZG230-450、ZG0Cr18Ni9 |
| Valve seat | 0Cr18Ni9, 0Cr18Ni9+PTFE, 0Cr18Ni9+ division Chatterley |
| Filler | PTFE, flexible graphite |
| Bellows | 0Cr18Ni9 |
| Shim | Graphite spiral wound gasket (V6590), serrated gasket |
| Film cover | A3、0Cr18Ni9 |
| Corrugated diaphragm | Clip reinforced nylon fabric nitrile rubber |
| Spring | 60Si2Mn |
| Valve push rod | 0Cr18Ni9、2cr13 |
The main technical parameters of the sleeve valve
| DN | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | ||||||||||||||
| Seat diameter mm | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | ||||||||||||||
| Rated kv | Linear | 6.9 | 11 | 17.6 | 27.5 | 44 | 69 | 110 | 176 | 275 | 440 | 630 | 1000 | 1600 | 2156 | 2816 | |||||||||||||
| The percentage of | 6.3 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 250 | 400 | 690 | 900 | 1440 | 1960 | 2560 | ||||||||||||||
| Nominal pressure（MPa） | 1.6、2.5、4.0、6.4、10 | ||||||||||||||||||||||||||||
| Trip（mm） | 16 | 25 | 40 | 60 | 100 | 130 | |||||||||||||||||||||||
| The effective area of the film Ae（cm2） | 280 | 350 | 560 | 900 | 1400 | 活塞式 | |||||||||||||||||||||||
| Signal range KPa | 20-100、40-200、80-240 | ||||||||||||||||||||||||||||
| Gas pressure steam source MPa | 0.1-0.4 | 0.4-0.7 | |||||||||||||||||||||||||||
| The inherent flow characteristics | Linear, equal percentage, quick opening | ||||||||||||||||||||||||||||
| The inherent adjustable ratio | 50:1 | ||||||||||||||||||||||||||||
| The leakage class | Hard seal, soft seal IV V; VI | ||||||||||||||||||||||||||||
| Flange size | According to JB/79. (2) _94, HG20592_97, GB, ANSI, JIB, DIN and other standards | ||||||||||||||||||||||||||||
| Body material | WCB, 304, 316, WC6, nickel, titanium, Hastelloy, Monel etc. | ||||||||||||||||||||||||||||
| Valve material | 304, 316, 420, nickel, titanium, Hastelloy, Monel etc. | ||||||||||||||||||||||||||||
| Working temperature℃ | -40~+230 ℃ (room temperature), +230~+450 ℃, +450~+560 ℃ (Zhong Wen) (high temperature), -40~-196 ℃ (low temperature) | ||||||||||||||||||||||||||||
| Series type | At room temperature, medium temperature, low temperature type. Bellows seal type,jacket type heat, regulating off type | ||||||||||||||||||||||||||||
Main performance index
| Serial number | Project | Standard type regulating valve | High temperature, low temperature valve | ||||
| Not with a locator | With a locator | Not with a locator | With a locator | ||||
| 1 | The basic error（%） | ±5 | ±1 | ±15 | ±4 | ||
| 2 | The return difference<（%） | 3 | 1 | 10 | 3 | ||
| 3 | The dead zone <（%） | 3 | 0.4 | 8 | 1 | ||
| 4 | Always point bias <（%） | Open air | The starting point | ±2.5 | ±1 | ±6 |
±2.5 |
| Finish | ±5 | ±15 | |||||
| Air to close | The starting point | ±5 | ±15 | ||||
| Finish | ±2.5 | ±6 | |||||
| 5 | Rated stroke deviation<（%） | ±2.5 | +2.5 | +6 | +2.5 | ||
Note: This product performance accords with GB/T4213 - 2008
To allow pressure gas off type (positive effect) metal sealing type allows differential pressure gauge Company： MPa
| The executive agency model | Spring range（KPa） | Air pressure（KPa） | Positioner（Take / no） | Seat diameter dn(mm) | ||||||||||
| 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | ||||
| ZHA-22 | 20-100 | 0.14 | no | 1.27 | 1.06 | |||||||||
| Belt | 3.81 | 3.18 | ||||||||||||
| 40-200 | 0.25 | Belt | 5.40 | 4.50 | ||||||||||
| 80-240 | 0.4 | Belt | 10.0 | 9.81 | ||||||||||
| ZHA-23 | 20-100 | 0.14 | no | 1.33 | 0.93 | 0.76 | ||||||||
| Belt | 3.40 | 2.80 | 2.29 | |||||||||||
| 40-200 | 0.25 | Belt | 4.82 | 3.96 | 2.29 | |||||||||
| 80-240 | 0.4 | Belt | 10.0 | 8.63 | 7.06 | |||||||||
| ZHA-34 | 20-100 | 0.14 | no | 0.92 | 0.76 | 0.61 | ||||||||
| Belt | 2.78 | 2.29 | 1.85 | |||||||||||
| 40-200 | 0.25 | Belt | 3.94 | 3.24 | 2.62 | |||||||||
| 80-240 | 0.4 | Belt | 8.58 | 7.06 | 5.72 | |||||||||
| ZHA-45 | 20-100 | 0.14 | no | 0.86 | 0.72 | 0.54 | ||||||||
| Belt | 2.58 | 2.16 | 1.63 | |||||||||||
| 40-200 | 0.25 | Belt | 3.66 | 3.70 | 2.32 | |||||||||
| 80-240 | 0.4 | Belt | 7.97 | 6.68 | 5.05 | |||||||||
氣關式（正作用）金屬密封型允許壓差表 Company： MPa
The executive agency model | Spring range（KPa） | Air pressure（KPa） | Positioner（帶/否） | Seat diameter dn(mm) | ||||||||||
20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | ||||
ZHA-22 | 20-100 | 0.14 | Take / no | 1.27 | 1.06 |
|
|
|
|
|
|
|
|
|
40-200 | 0.25 | Belt | 3.81 | 3.18 |
|
|
|
|
|
|
|
|
| |
80-240 | 0.28 | Belt | 10.0 | 8.48 |
|
|
|
|
|
|
|
|
| |
ZHA-23 | 20-100 | 0.14 | Take / no |
|
| 1.33 | 0.93 | 0.76 |
|
|
|
|
|
|
40-200 | 0.25 | Belt |
|
| 3.40 | 2.80 | 2.29 |
|
|
|
|
|
| |
80-240 | 0.28 | Belt |
|
| 9.08 | 7.46 | 6.11 |
|
|
|
|
|
| |
ZHA-34 | 20-100 | 0.14 | Take / no |
|
|
|
|
| 0.92 | 0.76 | 0.61 |
|
|
|
40-200 | 0.25 | Belt |
|
|
|
|
| 2.78 | 2.29 | 1.85 |
|
|
| |
80-240 | 0.28 | Belt |
|
|
|
|
| 7.40 | 6.11 | 4.94 |
|
|
| |
ZHA-45 | 20-100 | 0.14 | Take / no |
|
|
|
|
|
|
|
| 0.86 | 0.72 | 0.54 |
40-200 | 0.25 | Belt |
|
|
|
|
|
|
|
| 2.58 | 2.16 | 1.63 | |
80-240 | 0.28 | Belt |
|
|
|
|
|
|
|
| 6.89 | 5.78 | 4.37 | |
氣關式（正作用）金屬密封型允許壓差表 Company： MPa
| The executive agency model | Spring range（KPa） | Air pressure（KPa） | Positioner（Take / no） | Seat diameter dn(mm) | ||||||||||
| 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | ||||
| ZHA-22 | 20-100 | 0.14 | no | 1.98 | 1.66 | |||||||||
| Belt | 3.00 | 3.00 | ||||||||||||
| 40-200 | 0.25 | Belt | 3.00 | 3.00 | ||||||||||
| 80-240 | 0.4 | Belt | 3.00 | 3.00 | ||||||||||
| ZHA-23 | 20-100 | 0.14 | no | 1.77 | 1.45 | 1.19 | ||||||||
| Belt | 3.00 | 3.00 | 2.86 | |||||||||||
| 40-200 | 0.25 | Belt | 3.00 | 3.00 | 2.86 | |||||||||
| 80-240 | 0.4 | Belt | 3.00 | 3.00 | 3.000 | |||||||||
| ZHA-34 | 20-100 | 0.14 | no | 1.44 | 1.19 | 0.96 | ||||||||
| Belt | 3.00 | 2.86 | 2.31 | |||||||||||
| 40-200 | 0.25 | Belt | 3.00 | 3.00 | 3.00 | |||||||||
| 80-240 | 0.4 | Belt | 3.00 | 3.00 | 3.00 | |||||||||
| ZHA-45 | 20-100 | 0.14 | no | 1.34 | 1.22 | 0.85 | ||||||||
| Belt | 3.00 | 2.71 | 2.04 | |||||||||||
| 40-200 | 0.25 | Belt | 3.00 | 3.00 | 2.73 | |||||||||
| 80-240 | 0.4 | Belt | 3.00 | 3.00 | 3.00 | |||||||||
氣關式（正作用）金屬密封型允許壓差表 Company： MPa
| The executive agency model | Spring range（KPa） | Air pressure（KPa） | Positioner（Take / no） | Seat diameter dn(mm) | ||||||||||
| 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | ||||
| ZHA-22 | 20-100 | 0.14 | Take / no | 1.98 | 1.65 | |||||||||
| 40-200 | 0.25 | Belt | 3.00 | 3.00 | ||||||||||
| 80-240 | 0.28 | Belt | 3.00 | 3.00 | ||||||||||
| ZHA-23 | 20-100 | 0.14 | Take / no | 1.77 | 1.45 | 1.19 | ||||||||
| 40-200 | 0.25 | Belt | 3.00 | 3.00 | 2.86 | |||||||||
| 80-240 | 0.28 | Belt | 3.00 | 3.00 | 3.00 | |||||||||
| ZHA-34 | 20-100 | 0.14 | Take / no | 1.44 | 1.19 | 0.95 | ||||||||
| 40-200 | 0.25 | Belt | 3.00 | 2.86 | 2.31 | |||||||||
| 80-240 | 0.28 | Belt | 3.00 | 3.00 | 3.00 | |||||||||
| ZHA-45 | 20-100 | 0.14 | Take / no | 1.34 | 1.22 | 0.85 | ||||||||
| 40-200 | 0.25 | Belt | 3.00 | 2.71 | 2.04 | |||||||||
| 80-240 | 0.28 | Belt | 3.00 | 3.00 | 3.00 | |||||||||
Note that allows differential pressure gauge:
Packing material for the PTFE
Flow direction and valve medium off in the opposite direction
Leakage in grade IV metal seal type
Number of the nominal pressure, pressure, temperature limits
Bellows seal type P2 ≠ 0 re check;
Dimensions and weight Company：mm
| DN | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | |||||||||||||
| L | PN16MPa | 187 | 184 | 200 | 222 | 254 | 276 | 298 | 352 | 410 | 451 | 600 | 673 | 737 | ||||||||||||
| PN16MPa | 194 | 197 | 210 | 235 | 267 | 292 | 317 | 368 | 425 | 473 | 600 | 708 | 775 | |||||||||||||
| PN16MPa | 206 | 210 | 220 | 251 | 286 | 311 | 337 | 394 | 440 | 508 | 650 | 752 | 819 | |||||||||||||
| A | 280 | 360 | 470 | 580 | ||||||||||||||||||||||
| H1 | PN16、40 | 53 | 58 | 68 | 73 | 80 | 90 | 98 | 108 | 108 | 140 | 168 | 225 | 245 | ||||||||||||
| PN16、64 | 63 | 68 | 75 | 83 | 88 | 100 | 105 | 125 | 125 | 170 | 203 | 260 | 280 | |||||||||||||
| H2 | Actuator | 280 | 310 | 395 | 525 | 725 | ||||||||||||||||||||
| H3 | High temperature heat sink type | 210 | 210 | 225 | 230 | 230 | 335 | 335 | 345 | 408 | 454 | 482 | 550 | 580 | ||||||||||||
| Bellows seal | 303 | 305 | 392 | 395 | 405 | 529 | 540 | 553 | 710 | 756 | 800 | 900 | 940 | |||||||||||||
| H | Standard room temperature | 400 | 420 | 450 | 455 | 460 | 610 | 622 | 640 | 780 | 870 | 890 | 1205 | 1235 | ||||||||||||
| Low temperature type | H3 | 750 | 900 | |||||||||||||||||||||||
| H4 | 90 | 90 | 92 | 92 | 92 | 98 | 98 | 98 | 110 | 120 | 120 | 180 | 180 | |||||||||||||
| D | 310 | 310 | 335 | 335 | 335 | 430 | 465 | 520 | 585 | 660 | 770 | 850 | 850 | |||||||||||||
| Weight kg | PN16/40 | 20 | 22 | 25 | 32 | 38 | 62 | 67 | 83 | 132 | 160 | 245 | 350 | 470 | ||||||||||||
| N64/100 | 24 | 25 | 30 | 42 | 52 | 78 | 82 | 102 | 170 | 190 | 285 | 500 | 660 | |||||||||||||
| Low temperature type PN16/40 | 40 | 48 | 52 | 60 | 68 | 90 | 105 | 143 | 210 | 282 | 315 | 580 | 800 | |||||||||||||
| Low temperature type PN64/100 | 50 | 60 | 65 | 75 | 85 | 112 | 131 | 178 | 262 | 352 | 393 | 725 | 980 | |||||||||||||
